Part No. :R4583502-01-01-00
Nominal Diameter : 500mm
Design Pressure : 4Bar(58PSI)
TestPressure : 6Bar(87PSI)
Points : 8
Material: 304/316L
Design Temperature : – 40°C~ + 200°C
Temperature range depends on the seal

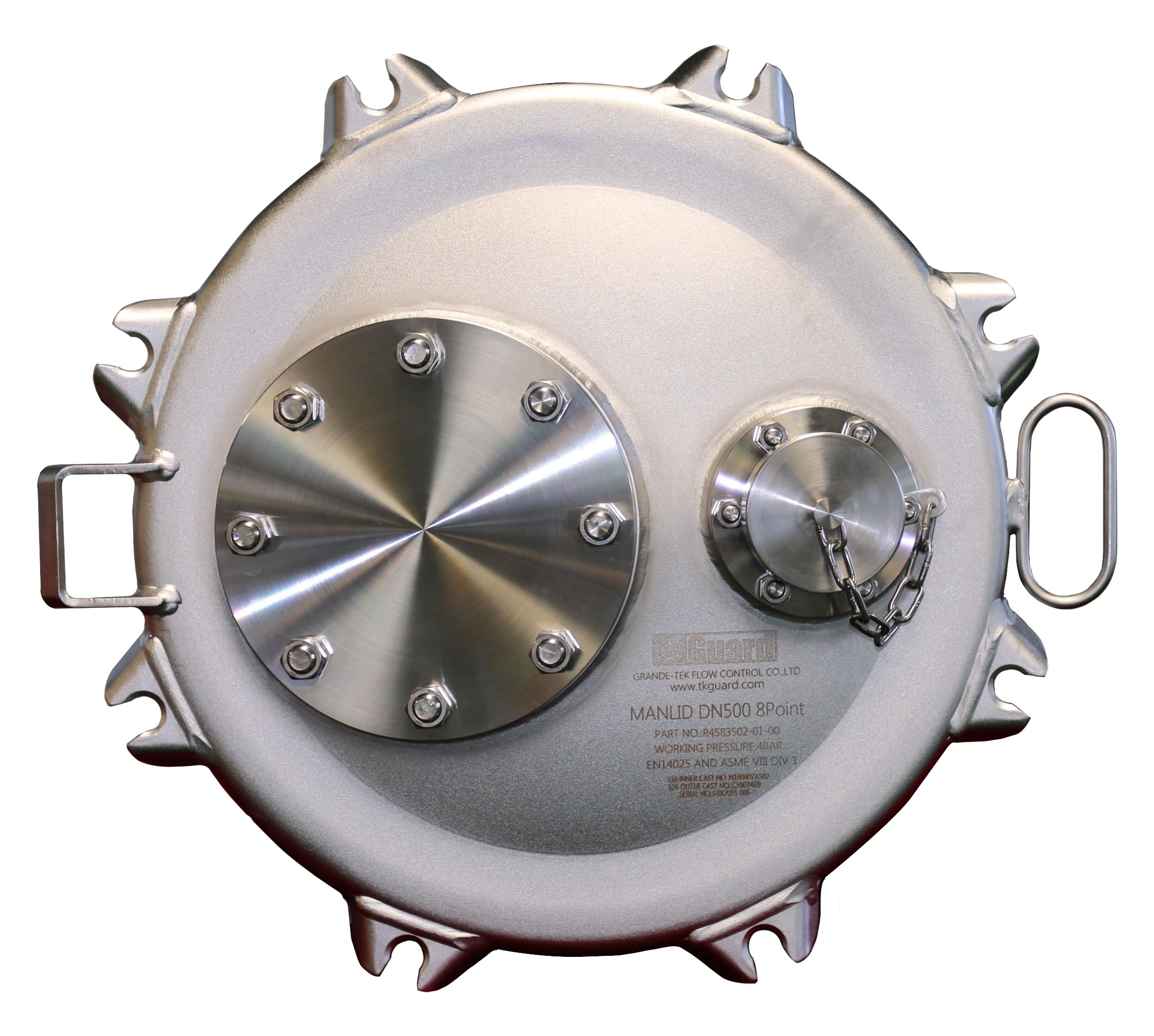

Hydrogen Peroxide Manlid Assembly with breather valve and flange, suitable for storage and transportation of hydrogen peroxide. Match with GUARD DN500 deep neckring ( 4Bar ).
Stainless steel swingbolts with stainless steel handnuts. Manlid seal sold separately.
Fitting Details
Part Drawing
| Item | Part No. | Description | Material |
| 1 | 18500001-00 | Exhalation Valve | 组件Assembly |
| 2 | 18500001-07 | Seal | PTFE |
| 3 | R4583502-01-01-01-00 | Manlid | 组件Assembly |
| 4 | R4583502-01-01-03 | Seal | PTFE |
| 5 | R4583502-01-01-02 | 3lind Flange | 304 |
| 6 | SNFA0229 | Screw Kits | 304 |
| 7 | SNFA0056 | Screw Kits | 304 |
