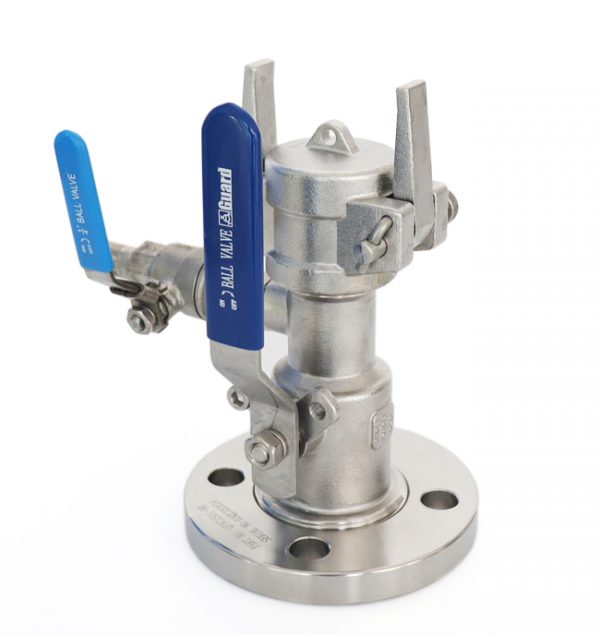

DN25 LPG Ball Valve

Category:

Part No.: QP5C2501-00
Connection:4x ф 14. 5xPCD85
Nominal Diameter: DN25
Nominal Pressure: PN25
Design Temperature: -40°C ~ 80°C
Contact Parts: CF8
Seal: PTFE

DN25 LPG Ball Valve, the Valve body and flange are threaded connection, The valve body is also equipped with a special small ball valve and DC quick coupling. Multi stage seal on spindle.

Fitting Details

Part Drawing

ItemPart No.Description
1QP5C2502-01LPG DN25 Body
2QP5C2501-02LPG DN25 Plug
3QP5C2501-0332X20X5X5 Ball
4QP5C2501-04Spindle
5QP5C2501-05Ball Seal
6QP5C2502-06LPG DN25 Flange
7QP5C2501-07PG Dn25 Body Seal
8QP5C2501-08Gland
9QP5C2501-09Stuffing
10QP5C2501-10Gasket
11QP5C2501-11Handle cover
12QP5C2502-12Handle
13QP5C5001-13-00Welding Assembly
14QP5C2501-14-00DN25 DC Type Quick Coupling Assembly
1585984600M14Nut
16859811008Spring Washer
1785984400M8Nut
1885988100M6*10M6x10 Capscrew
19859811006Spring Washer
