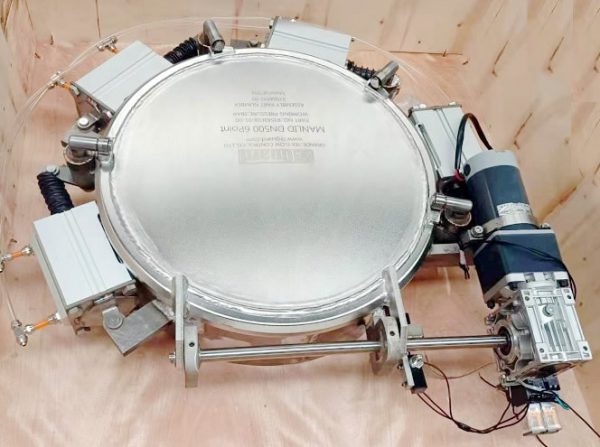

Automatic Manlid Assembly

Part No.: R356AF03-00
Nominal Diameter: 500mm
Design Pressure: 3Bar(58PSI)
TestPressure: 4 .5Bar(87PSI)
Points: 6
Material: 304
Design Temperature: – 40°C~ + 200°C

Temperature range depends on the seal

Automatic Manlid Assembly – made of aluminum alloy neckring, and the motor is used as the driving system to realize the automatic opening and closing control of the manlid.

Fitting Details

Part Drawing

ItemPart No.Description
1R356AF030100Automatic Manlid Cover Assembly
2R356AF030200Automatic Neckring Assembly
3R356AF030300Automatic Manid Cylinder Assembly
4R356AF0213Bearing Bush
5R356AF020700Automatic Manlid Wheel Assembly
68598120016Ring
7R356AF030800Spring Gland Assembly
8APB4650106 2.5”Negative Pressure Tower Spring
9R356AF0209Copper Bushings
10R356AF0210Link Lever
11R356AF0312Link Lever With Limiter
12R356AF0211Locating Bush
1385985400M14Nut
148598640010*40Hinge Pin
1585989600PL 803Connector
168598120012Ring
178598100012Washer
188598100018Washer
198598120018Ring
20R356AF030500Rotating Shaft Assembly
21R356AF0206Manlid Slider
2285988000M8*25Hexagon Socket Flat End Sting Screws
2385984200M8Nut
2485988 1 00M8*40Capscrew
25859881 00M4*30Capscrew
2685984200M4Nut
2785989908061 8Buttons
28859899080650Buttons
29852899090002Cardan Joint
3085009903AZ1 5GQMicro-action Sensor Switch
318500990224V120WMotor
32R356AF0314Rotating Shaft
