Part No. : QLF75001-00
Connection:
Container Flange4x ф17 x PCD125
Outlet4xф18x PCD114.3
Nominal Diameter: 50mm
MAWP:7Bar
Contact Parts: 316
Seal: PTFE、Viton
Design Temperature: -40°C ~ 190°C
weight: 5.9kg

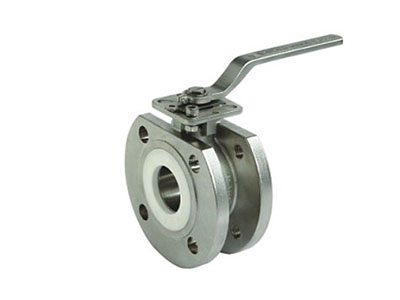

2”Full Bore Ball Valve- Left open or Right open,with lead seal hole. The ball valve is used as top discharge manually or with actuators. With floating bottom ball seal and dual-seal, the seal of valves is adjusted by tightening screw kits.
Fitting Details
![20221217163245](https://www.tkguard.com/wp-content/uploads/2022/10/20221217163245.jpg)
Part Drawing
![20221217163256](https://www.tkguard.com/wp-content/uploads/2022/10/20221217163256.jpg)
Parts marked in red belong to the seal SNMQ5001.
Parts marked in blue belong to the seal SNMQ5001.
Item | Part No. | Description |
1 | QL F75001-01 | Body |
2 | QL F75001-02 | Ball |
3 | QL F75001-03 | Spindle |
4 | QL F75001-04 | Ball Seal |
5 | QL F75001-05 | BallSeal |
6 | QL F75001-06 | Bottom Bearing |
7 | GB/T 3452.1-1992 | O-Ring |
8 | QL F75001-07 | Stuffing |
9 | QLF75001-08 | Junk Ring |
10 | QLF75001-09 | Belleville Washer |
11 | QL F75001-10 | Nut |
12 | QLF75001-11 | Plain Washer |
13 | QLF75001-12 | Location Nut |
14 | QLF75001-13 | Handle |
15 | GB/T894.1-1986 | LockRing |
16 | GB/T70.1-2000 | Stop Bolt |
17 | GB/T70.1-2000 | Stop Bolt |
18 | GB/T93-1987 | Spring Washer |
