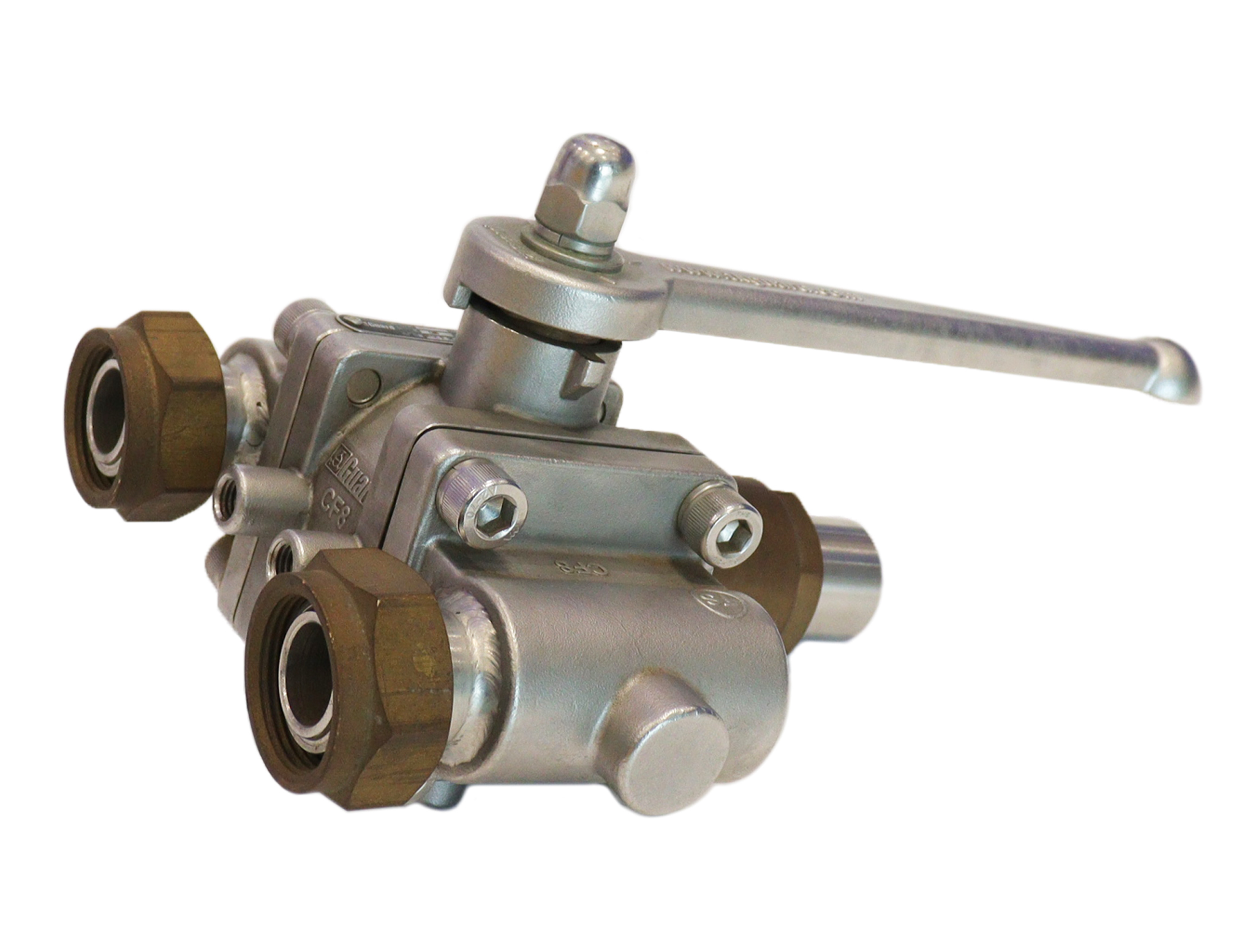

Cryogenic Three Way Ball Valve – – “T” type three-way ball valve is mainly used as the safety valve installation body of the combined safety system valve.With PCTFE seal. Design temperature range -196°C ~ 80°C.

Part No. : DQS42501-00
Norminal Diameter: 25mm
Design Pressure: PN40
Material: 304
Seal: PCTFE、 PTFE
Design Tempreature: -196°C ~80°C

Fitting Details

Part Drawing

ItemPart No.Description
1DQS42501-01Body
2DQS42501-02-0CCap
3DQS42501-03Ball
4DQS42501-04Spindle
5DQS42501-05Ball Seat
6DQS42501-06Gland
7DQS42501-07Spindle Packing
8DQS42501-08Spindle Packing
9DQS42501-09Body Seal
10DQS42501-10Nut
11DQS42501-1 1Welded Coupler
12DQS42501-12Gasket
13DQS42501-14 Handle
14GB/T3452.1O-Ring
15GB/T97.1Washer
16GB/T93pring Washer
17GB/T923Nut
18GB/T93 Spring Washer
19GB/T70.1Cap Screw
