1.5`` Air Inlet Ball Valve

Weld-in Flange

*Part No.:ZKQ04001-01
*External diameter:127mm
*Internal diameter:32mm
*Thickness:22.6mm
*Drilling:4xM10xPCD103.5

Recess Flange

*Part No.:ZKQ04001-02
*External diameter:166.5mm
*Internal diameter:32mm
*Thickness:Min 23.5mm Max46mm
*Drilling:4xM10xPCDф103.5

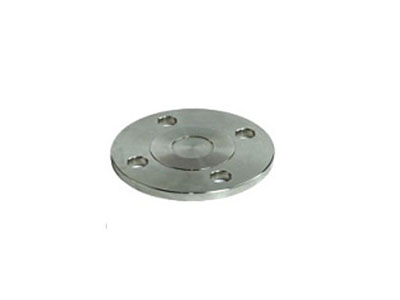

Blind Flange

*Part No.:ZKQ04002-02
*External diameter:150mm
*Internal diameter
*Thickness:8.5mm
*Drilling:4xф18xPCDф110

Blind Flange

*Part No.:ZKQ04001-04
*External diameter: 127mm
*Internal diameter
*Thickness:8.5mm
*Drilling:4xф14xPCDф103.5
