Part No.: 544C4P
Norminal Diameter: 100MM
Nominal Pressure: 6Bar
Design Tempreature: – 40°C~ + 200°C
Contact Part: CF8
Seal: FEP+ VITON

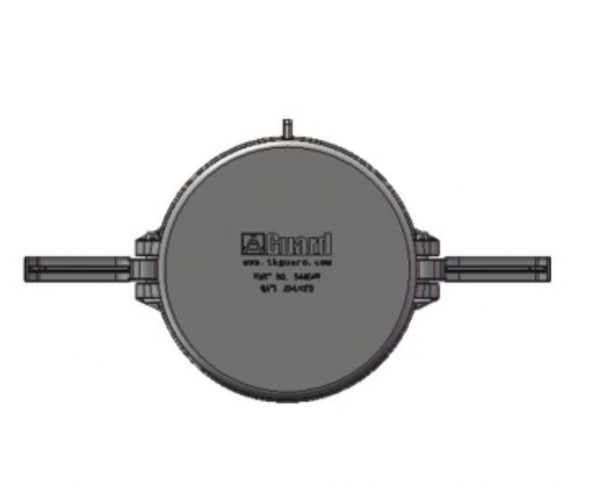

API Valve Cap – Protects the sealing surface of the API valve from accidental knocks and cleanliness
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | 544C4P-01 | Cap |
| 2 | 53804P3-02 | Lifting Lug |
| 3 | 85360020108*7 | O-ring |
| 4 | DL J68001-16 | Rings |
| 5 | 53804P3-05 | Chain |
| 6 | 53804P3-06 | Rivet |
