Part No.: R3563C01-00
Nominal Diameter : 500mm
Design Pressure : 1 Bar(14.5PSI)
TestPressure : 1 . 5Bar(21.7PSI)
Points : 6
Material:Stainless steel/Carbon Steel/Aluminum Alloy
Design Temperature : – 40°C~ + 200°C
Temperature range depends on the seal
Optional – Deep neckring height 120mm, 1 50mm and other dimensions can be customized; Stainless steel swingbolts with stainless steel handnuts. Manlid seal sold separately.
Fitting Details

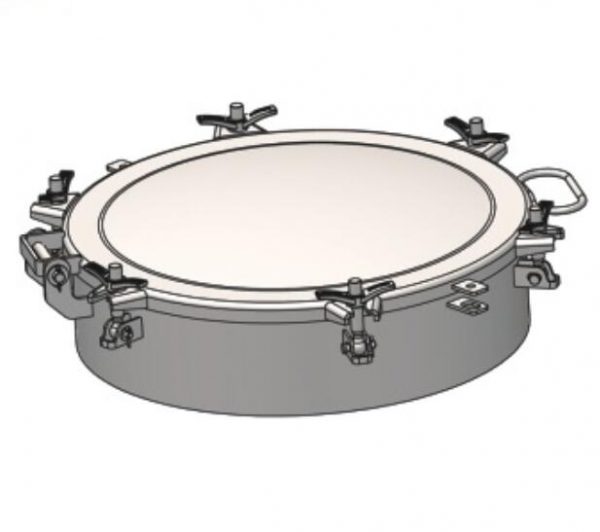

Part Drawing
| ltem | Part No. | Description | Material |
| 1 | R3563C01-01-00 | Manlid | Assembly |
| 2 | Seal (Sold Separately) | See Seal Data | |
| 3 | 0250A004-04-00 | Neckring | Assembly |
| 4 | RL 1 48002-00 | Swingbolt Assembly | Assembly |
| 5 | 0250A001-03 | Hinge Pin | 304 |
| 6 | 859860003.2*20 | Split Pin | 304 |
| 7 | 8598100012 | Washer | 304 |
