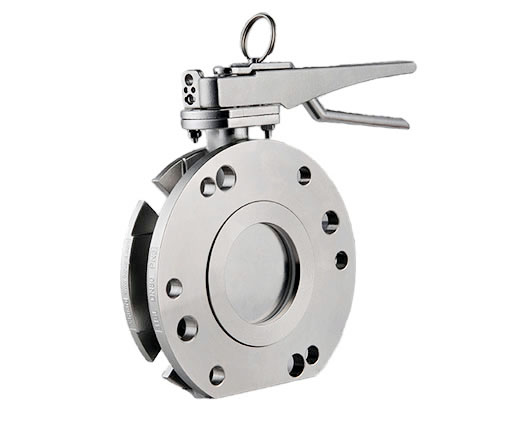

3” Flanged Butterfly Valve as Top Discharge
| Item | Part No. | Description |
| 1 | DL F68001-00 | Flanged Butterfly Valve DN80 |
| 2 | HDJ48003-11-00 | Pivot Pin Assembly |
| 3 | HDJ48003-09 | Blind Flange |
| 4 | SNF A0006 | 06 Screw Kits 06 |
| 5 | HDJ48003-10 | Gasket |
| 6 | SNFA0007 | Screw Kits 07 |
| 7 | ZTD68001-04 | Gasket |
| 8 | ZTD68001-05 | Syphon Tube Flange |
| 9 | ZTD68001-02 | Gasket |
| 10 | ZTD68001-06 | Weld-in Flange |
| 11 | SNFA0008 | Screw Kits 08 |
| 12 | ZTD68001-09 | Syphon Tube |
| 13 | ZTD68001-07 | Seal |
| 14 | ZTD68001-08 | Weld-in flange |
