Part No. : QKB04002-00
Connection:4x φ 11x PCD103.5
1.5″ BSP
Nominal Diameter: 30mm
Nominal Pressure: 10Bar
Contact Parts: 316
Seal: PTFE
Design Temperature: -40C ~ 190°C
weight: 1.8kg

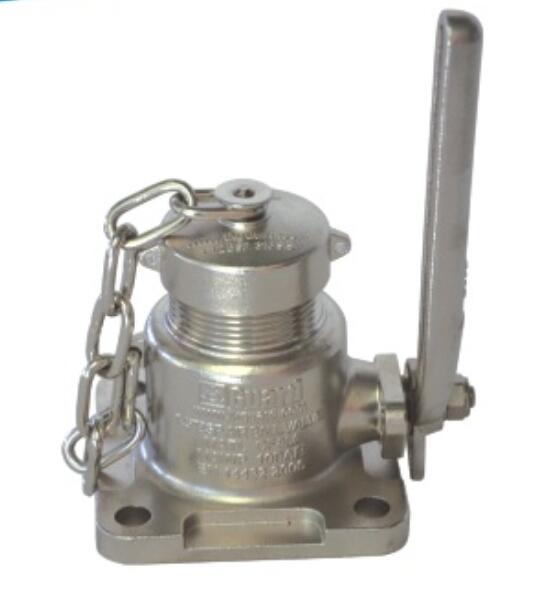

1.5” BSP Air Inlet Ball Valve- 1.5″ BSP connection. With pressure gauge and protection connection and leading seal. The pressure gauge is mounted on the right side of the handle.
Option- Protection, gauze filter and outlet connector.
Fitting Details
Part Drawing
| Item | Part No. | Description |
| 1 | QKB04002-01 | Body |
| 2 | FPK1-01 | Rear Seal |
| 3 | FPK1-06 | S 54X φ 29.3 Ball |
| 4 | FPK1-09 | Spindle |
| 5 | FPK1-05 | Gasket |
| 6 | FPK1-07 | 2 Spindle Packing |
| 7 | FPK1-04 | Junk Ring |
| 8 | FPK1-03 | Spindle Packing |
| 9 | FPK1-08 | Washer |
| 10 | 859810008 | Washer |
| 11 | 85984500M8 | M8 Capscrew |
| 12 | FPK1-02 | Front Seal |
| 13 | QKB04001-09 | Handle |
| 14 | QKB04001-10-00 | Dust Cap |
| 15 | WY07BB01 | Pressure Gauge |
| 16 | ZKQ04001-01 | Gauge Protection |
| 17 | 8598150038 | Snap Ring |
| 18 | QKB04001-14 | Filter |
Note: Part for repairing is available.
